Aluminum profiles for solar panels

Aluminum profiles play a pivotal role in the construction of solar panel structures, serving as the backbone for support and durability. These profiles are specifically engineered to withstand harsh environmental conditions while providing the necessary framework for solar panels to harness sunlight efficiently. With their lightweight yet robust nature, aluminum profiles offer versatility in design and ease of installation, making them a preferred choice for solar mounting systems. Their corrosion-resistant properties ensure longevity, even in areas prone to moisture or salt exposure. Furthermore, aluminum's recyclability aligns with the sustainable ethos of solar energy, contributing to the overall eco-friendliness of solar power systems. In essence, aluminum profiles represent the backbone of solar panel structures, combining strength, durability, and sustainability to support the advancement of renewable energy solutions.



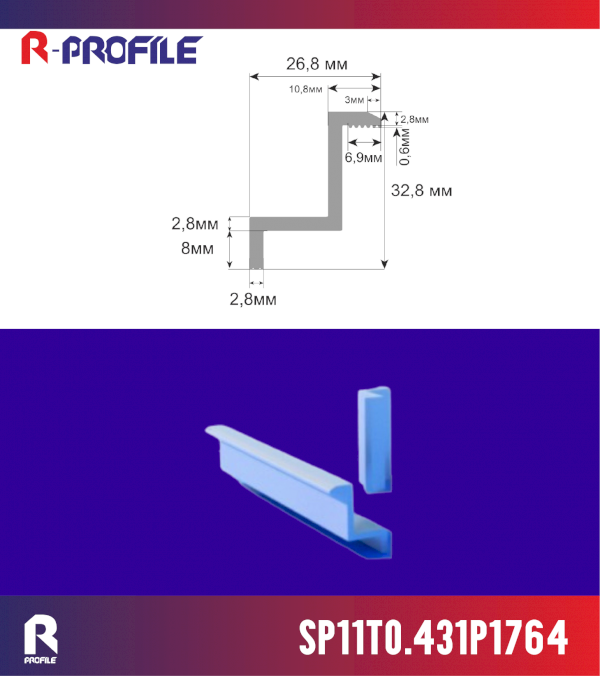

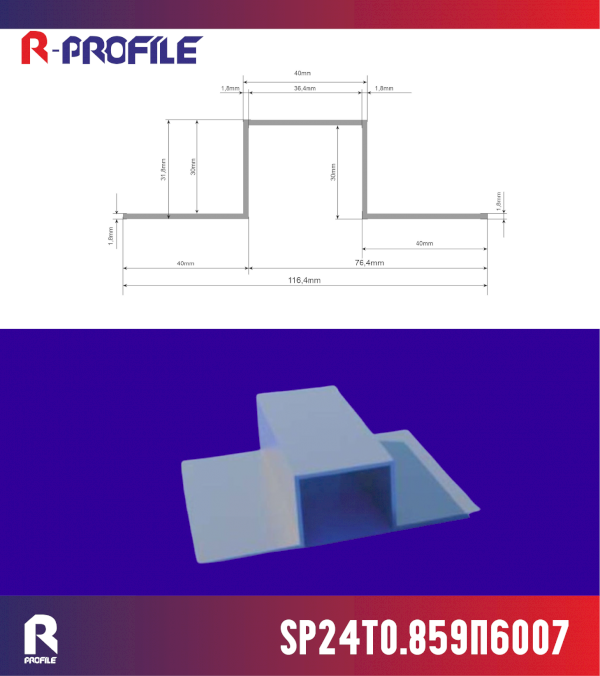

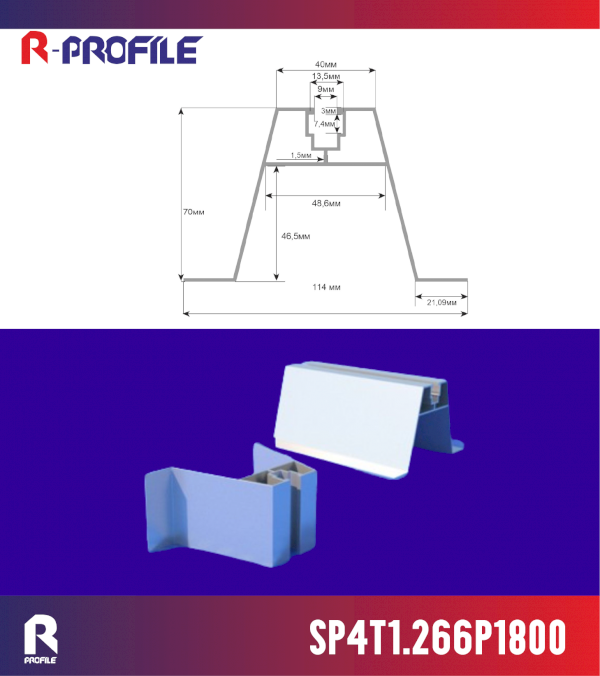

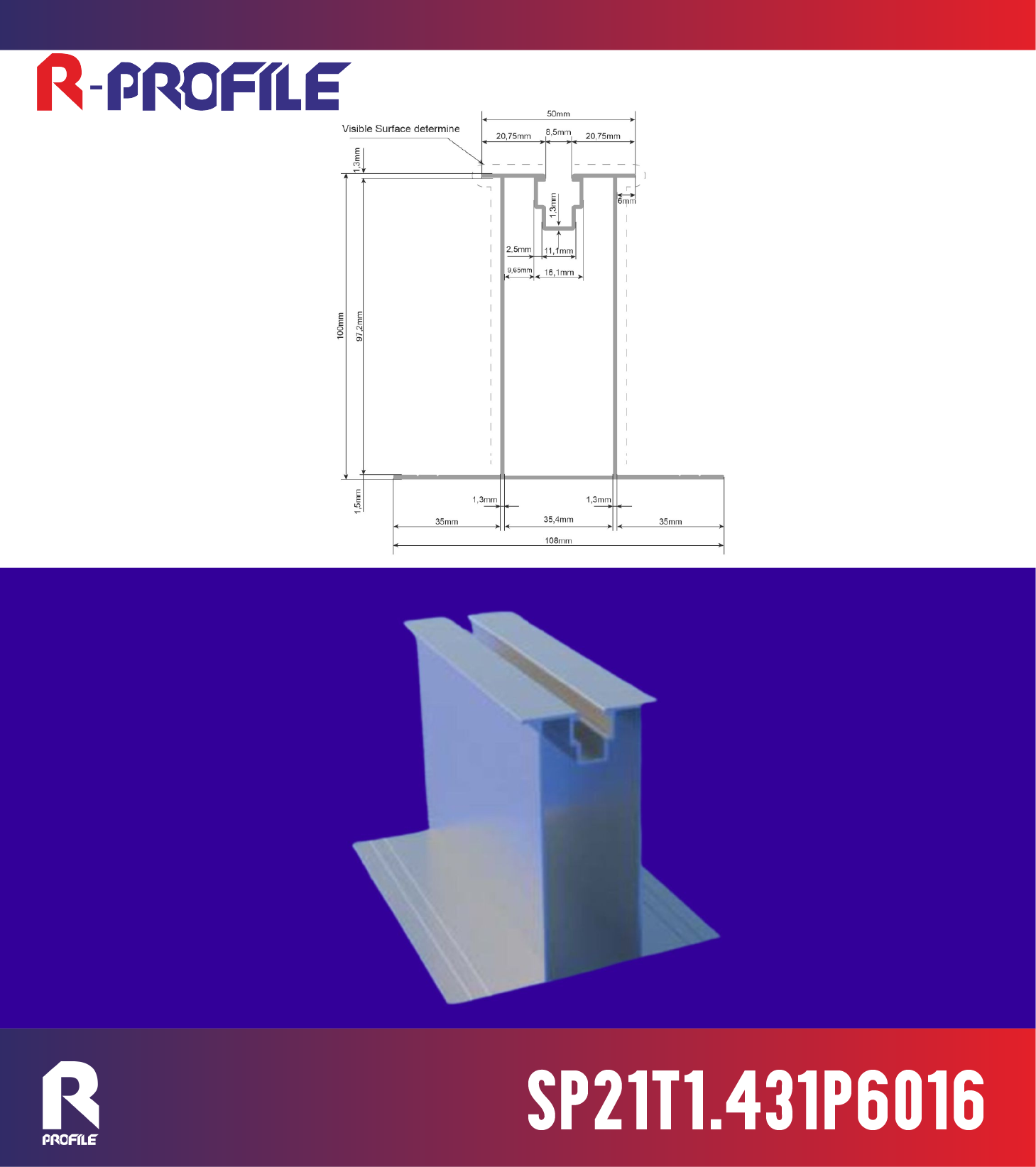

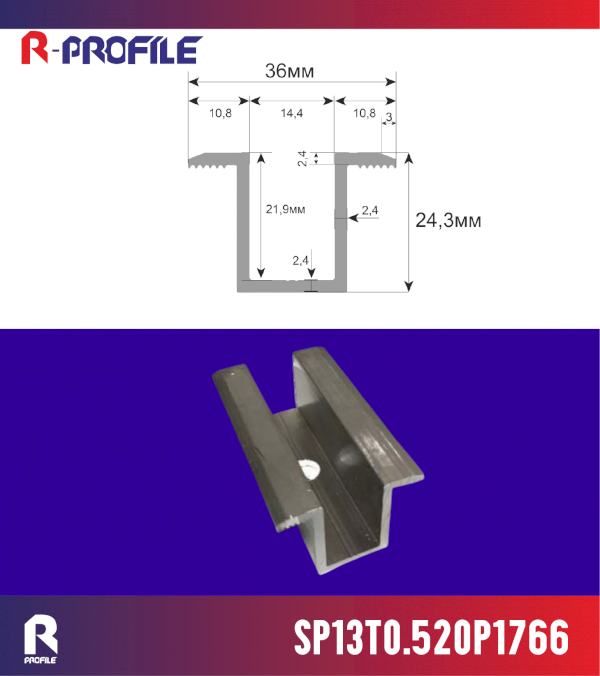

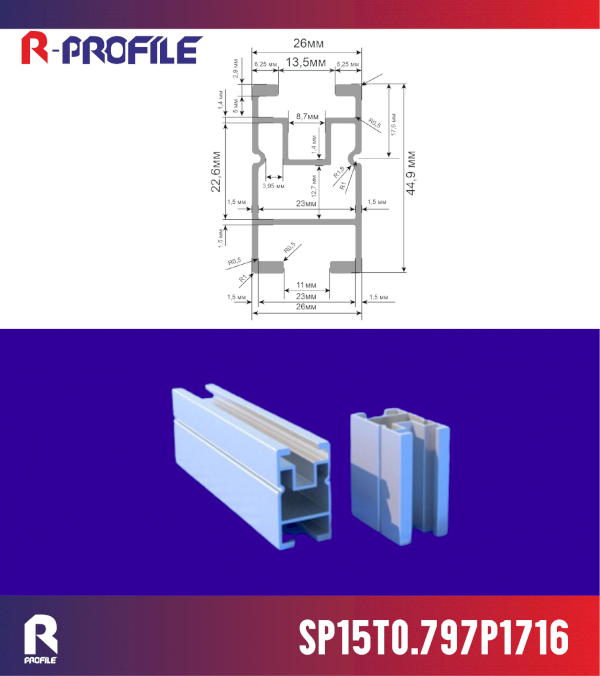

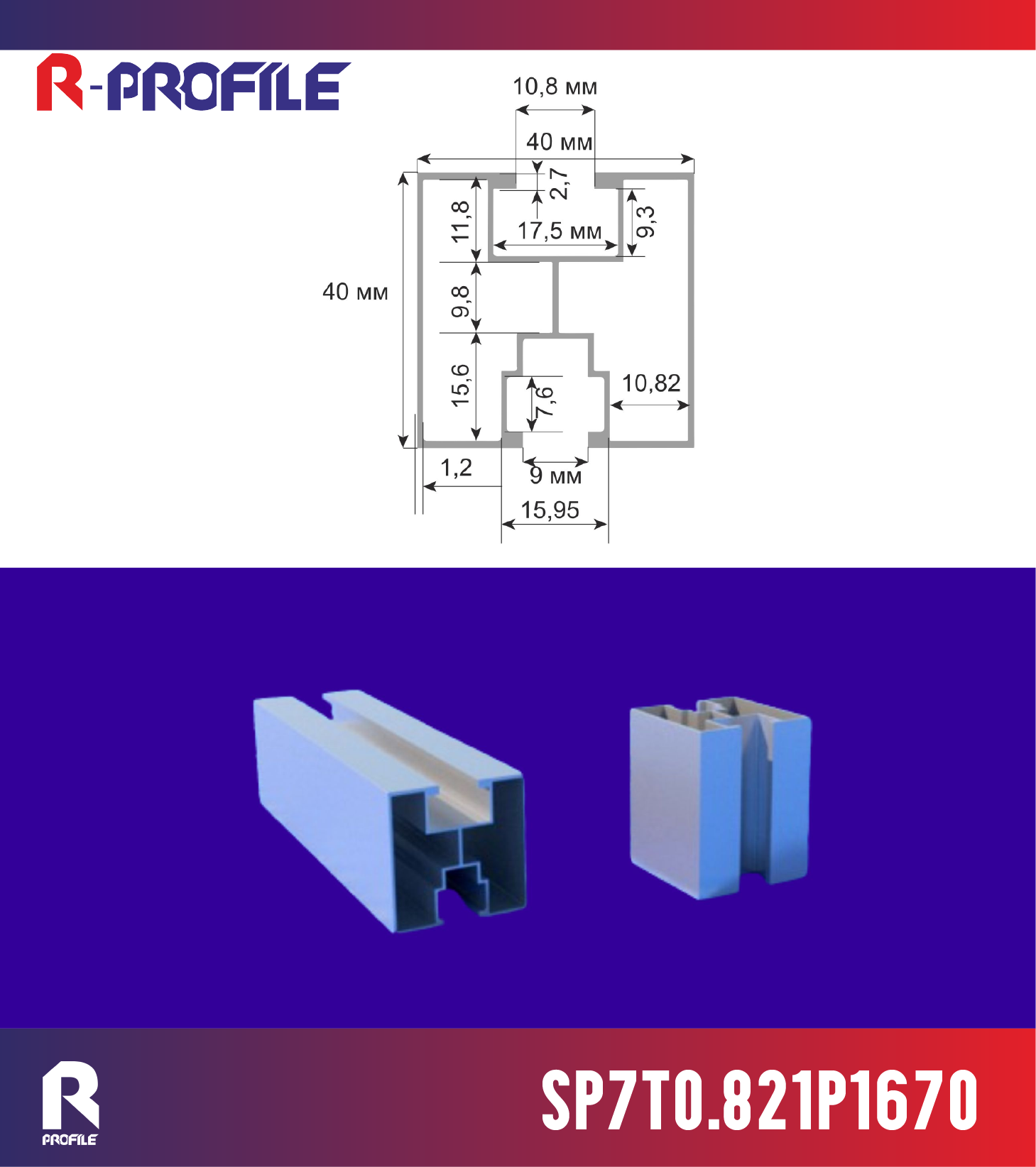

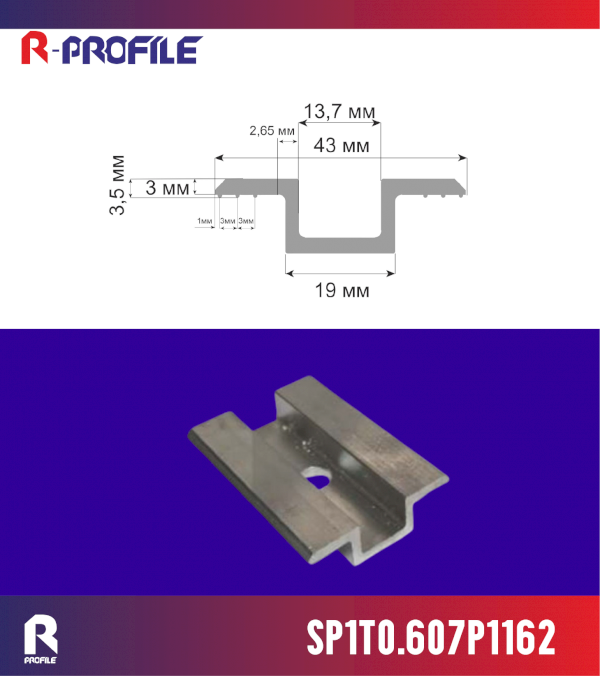

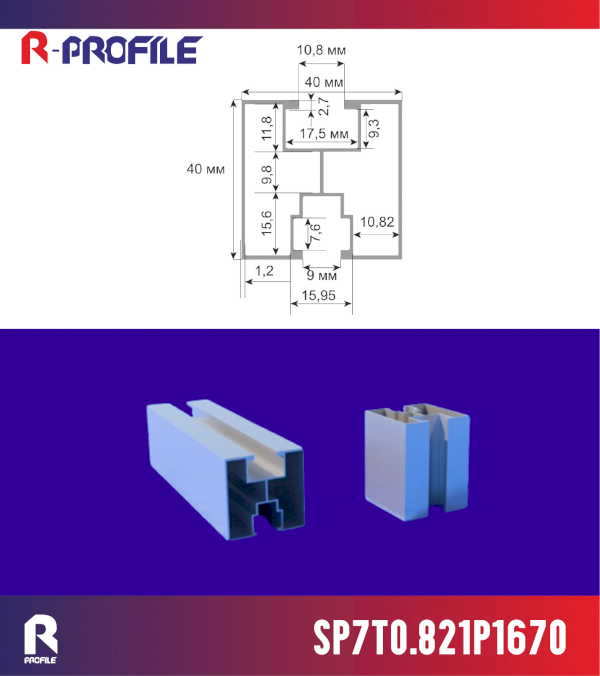

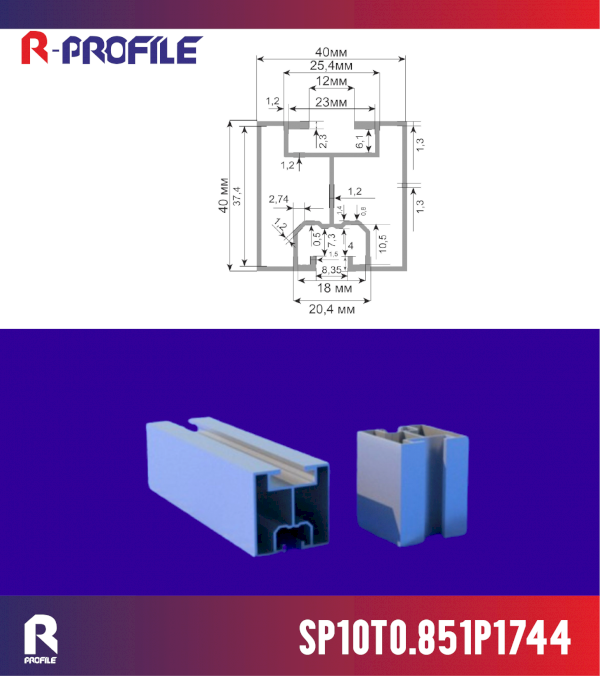

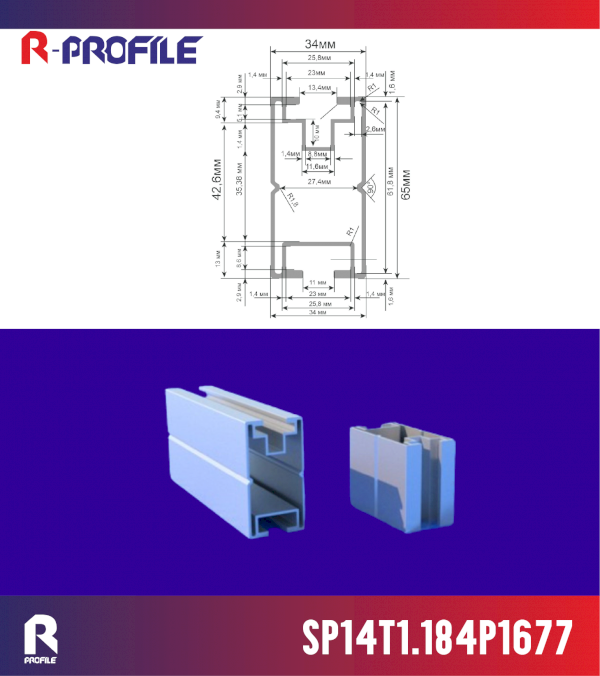

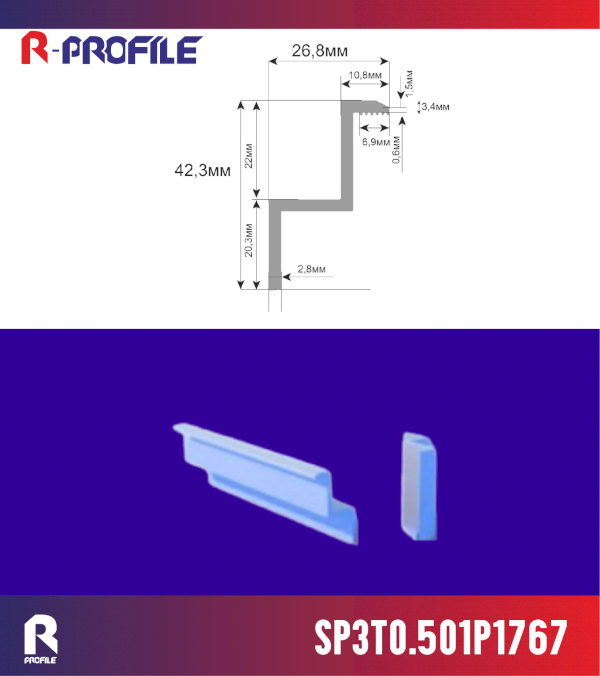

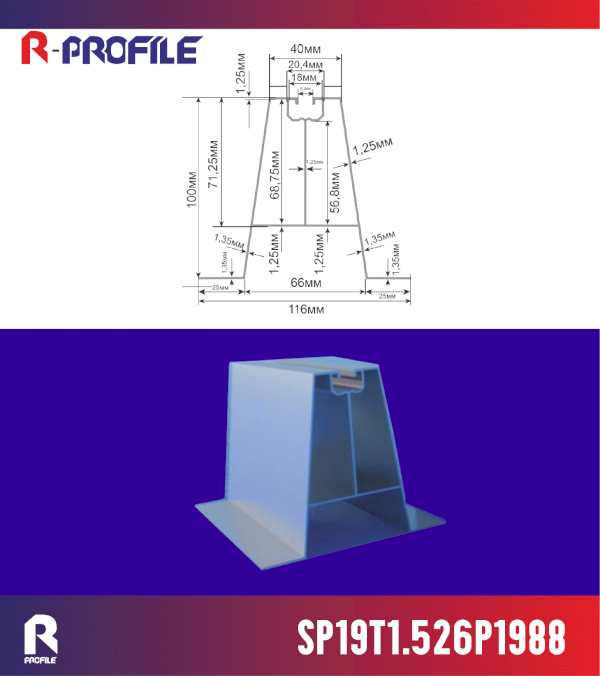

Best-Selling PV Mounting Profiles for Rooftop Photovoltaic Installations

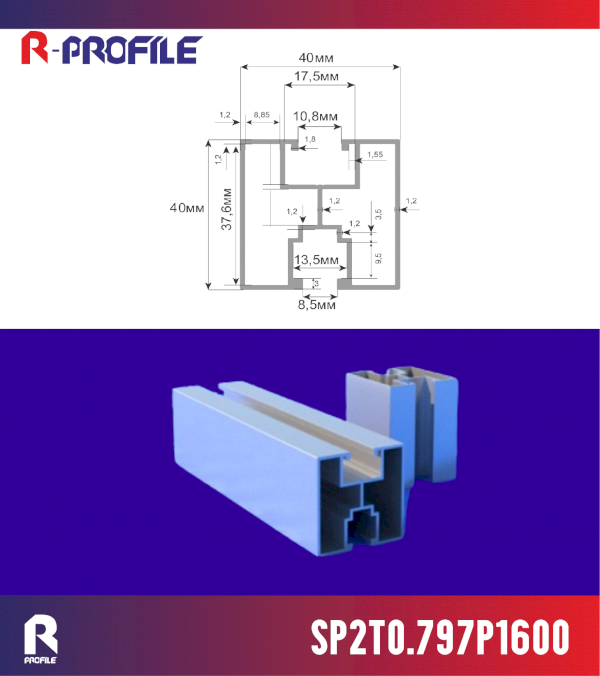

1. PV Profile ID: SP2T0,797P1600
The SP2T0,797P1600 aluminum profile is one of our top choices for mounting solar panels on various roof structures, including sloped roofs, flat roofs, and ground installations. This profile is engineered for robust support, ensuring stability and reliability for residential, commercial, and industrial photovoltaic (PV) projects.

Applications and Key Features:

  • Bottom Channel: The 40x40 mm bottom channel facilitates mounting on various structures using M10 hexagonal head screws, allowing connection to roof brackets, mounting triangles, or adapters. The flexibility to choose different screw lengths ensures secure installations across different settings.

    • Compatible Fasteners: M10 hex head screws (M10x20, M10x25, M10x30), M10 flange nut (DIN 6923).

  • Top Channel: The top channel is designed for securing PV panels using middle or end clamps. The clamps, tightened with Allen screws and M8 nuts, firmly hold the solar modules in place, offering a stable and resilient attachment.

    • Compatible Fasteners: Allen screws (M8 DIN 912) in various lengths (M8x20, M8x25, M8x30, M8x35, M8x40), M8 square nut (DIN 557), M8 hexagonal nut (DIN 934).

2. Trapezoidal PV Profile ID: SP5T1,103P1603
The SP5T1,103P1603 trapezoidal aluminum profile is another best-selling solution for rooftop PV installations. It is specifically designed for quick and easy mounting of solar panels on both pitched and flat roofs. Made from high-strength 6060 T66 aluminum, this profile offers about 30% more strength than the 6060 PA38 alloy, providing durability and stability without adding excess weight.

Applications and Key Features:

  • Suitable Structures: Ideal for use on pitched roof structures and flat roof installations, making it versatile for various rooftop configurations.
  • Material Strength: Manufactured from 6060 T66 aluminum, this profile is both lightweight and strong, ensuring a long-lasting, high-performance solar mounting solution.
  • Trapezoidal Profile Dimensions:
    • Length: Available in 6210 mm or custom lengths of 300, 330, and 400 mm.
    • Height: 40 mm, Width: 114 mm.

Accessories for Mounting Trapezoidal Profiles:

  • Bottom Channel: Mounts using self-drilling screws with washers, ensuring a strong hold on the roof without the need for pre-drilling.
    • Compatible Fasteners: Self-drilling screw with head 6.0x25 bi-metal with washer 16, self-drilling screw with head 5.5x25 EJ with washer 16.
  • Top Channel: Facilitates the mounting of solar panels using Allen screws and sliding or square nuts for easy and adjustable installation.
    • Compatible Fasteners: Allen screw M8 DIN 912, sliding nut with ball M8, square nut M8 DIN 557.

Advantages of Using R-Profile Trapezoidal PV Profiles:

  • Quick and Easy Installation: The trapezoidal design allows for fast and straightforward assembly.
  • High Strength and Light Weight: The aluminum alloy provides exceptional strength while remaining lightweight.
  • No Drilling Required: Eliminates the need to drill into profiles or panels, preserving the integrity of the material and reducing installation time.

Why Choose R-Profile PV Mounting Solutions?

Our best-selling PV mounting profiles and accessories offer versatile, high-quality solutions for securing solar panels on rooftops. Whether you're installing on sloped roofs, flat roofs, or even ground structures, the combination of our SP2T0,797P1600 and SP5T1,103P1603 profiles ensures that you get durable and reliable support, tailored to your installation needs.

  • Superior Quality: Both profiles are crafted from durable aluminum alloys for long-lasting performance.
  • Flexible Options: Available in various lengths and compatible with a wide range of mounting accessories.
  • Efficient Installation: Designed for rapid, secure assembly to reduce labor time and costs.

R-Profile PV mounting profiles are the ideal choice for a variety of photovoltaic installations, ensuring the safety, durability, and optimal performance of your solar energy systems.

Aluminum profiles for solar panels PDF Catalog
